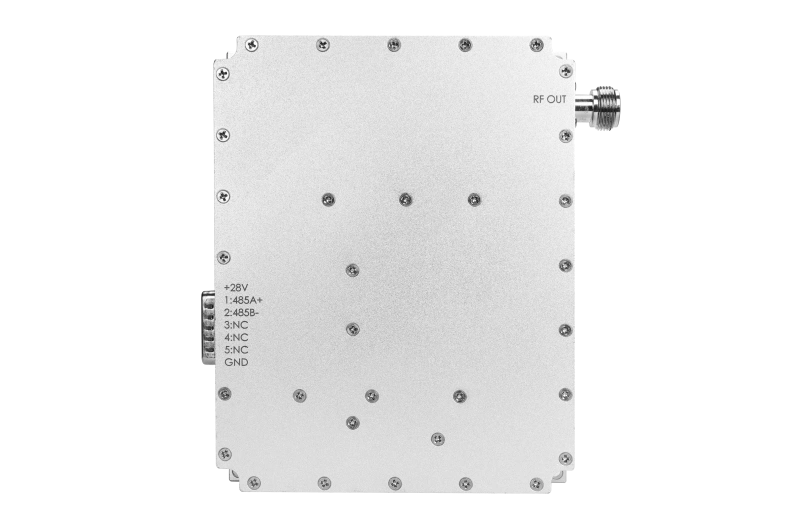

DPA15712328-FrontDPA15712328-Front

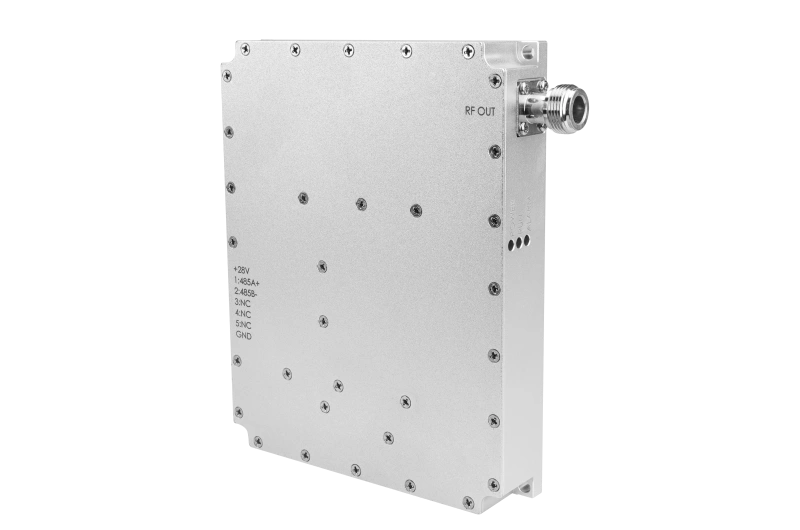

DPA15712328-4DPA15712328-4

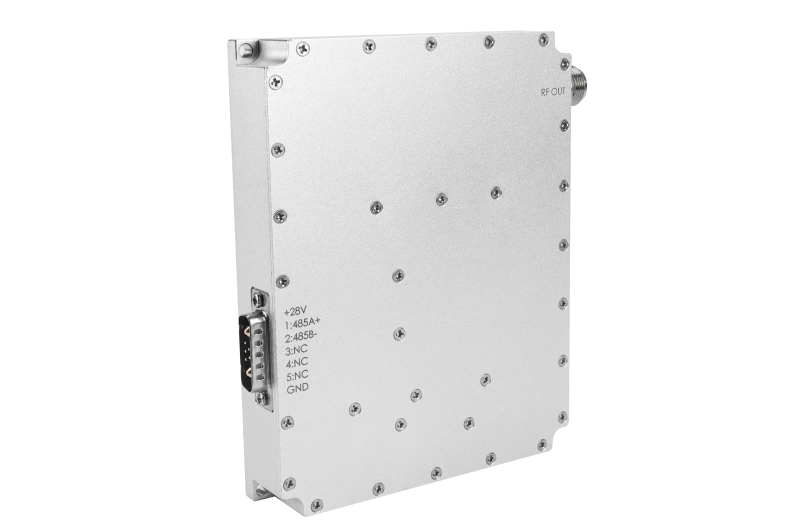

DPA15712328-5DPA15712328-5
DPA15712328-6DPA15712328-6

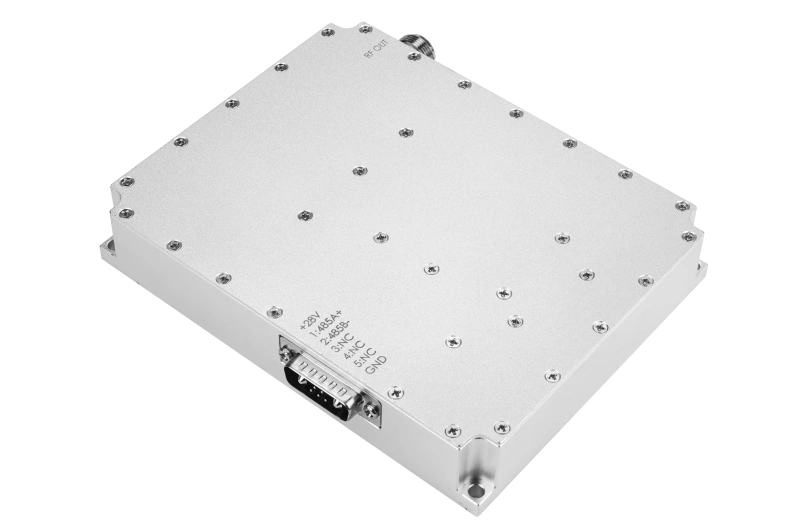

DPA15712328-3DPA15712328-3

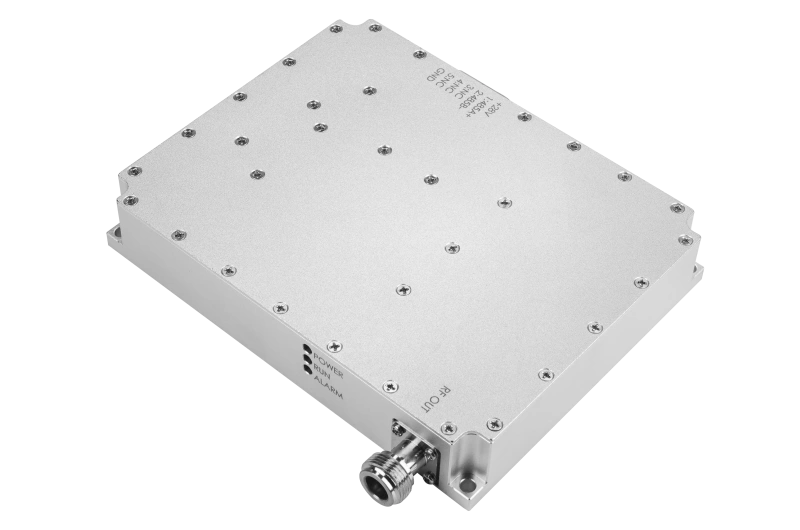

DPA15712328-2DPA15712328-2

DPA15712328

DDS
RS485
7W2
N-F
Zorelock flagship anti drone DDS module provides a standard RF output power of 50W/100W and features deep software-defined control capabilities. Within its gain bandwidth, the module supports the precise division of up to four independent sub-bands via software algorithms. This flexible frequency allocation mechanism allows users to autonomously configure “attenuated window bands” (weak interference windows) based on complex local electromagnetic environments. This ensures effective management of target signals while minimizing unintentional disruption to surrounding authorized communication frequencies, achieving optimized spectrum coexistence.

Produce Range

Selectable Frequency RangeMaximum selectable bandwidthMaximum selectable output power
20-500MHz100MHz100W
500-3600MHz350MHz100W
4800-6000MHz350MHz80W

*Note: The “Selectable Frequency Range” shown in this table refers to the manufacturing coverage, not the exact output range of a single module. Each module must operate within this range, with an actual output bandwidth that does not exceed the “Maximum Selectable Bandwidth.”

Specification

ItemIndicator
Operating Voltage28V
Conversion Efficiency≥42%
Operating Environment Temperature (°C)-20~+85℃
Size155*125*60mm
Weight810g

*Special Disclaimer: Due to the transition period between product updates and online display, the image and text specifications on this page may differ from the actual product. The images and text on this page are not intended to be used as a basis for actual delivery. Specific product and technical specifications are subject to the actual product configuration. Interested buyers should contact Zorelock sales staff for confirmation. Zorelock reserves the right to modify image specifications and make final interpretations.

Contact To Sales to get the physical pictures.
