Detecting & Jamming Integrated Anti-drone System

Pine-INT-5

Pine-INT-5-主图1Pine-INT-5-主图1

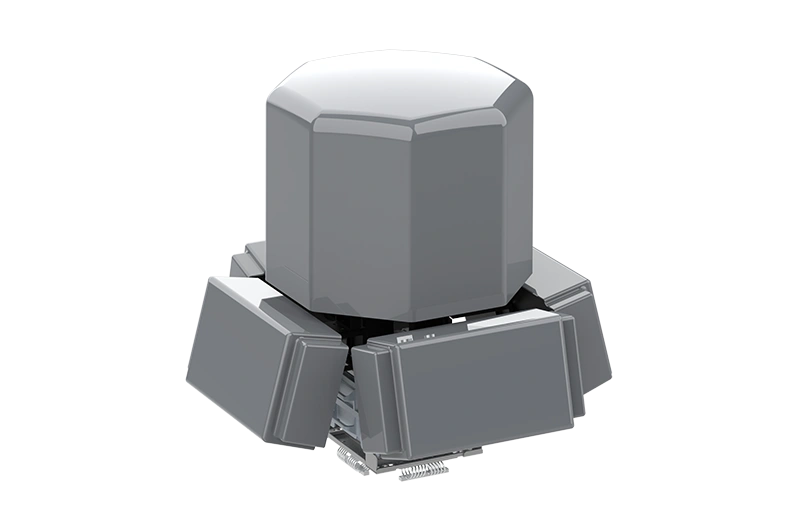

Pine-INT-5-主图2Pine-INT-5-主图2

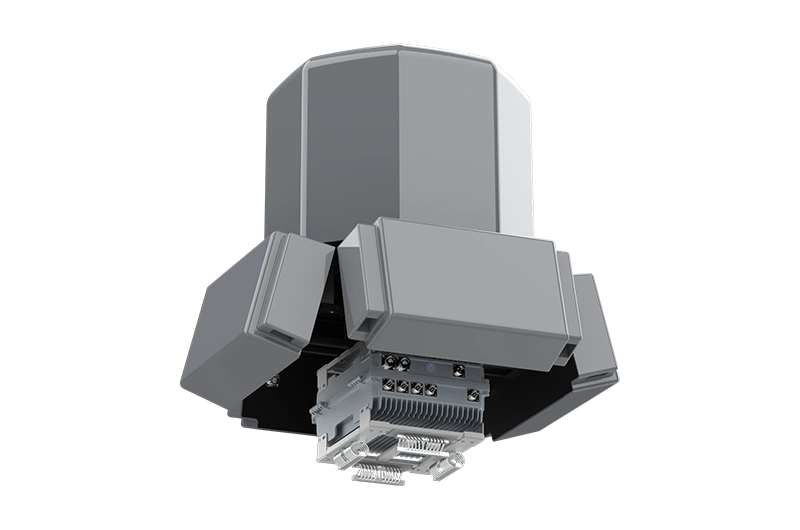

Pine-INT-5-主图3Pine-INT-5-主图3

Pine-INT-5

Stationary
Vehicle-Mounted
The Pine-INT-5 system is composed of detectors and a four-sided directional jamming array. It can detect, identify, jam and counter drones. It can make drones hover in place, force landing or return home, effectively safeguard low-altitude airspace security and prevent drones from entering the defense zone. It delivers superior detection and defense performance with long-range working capability. Unattended by personnel, it can automatically implement drone detection and defense. It can be deployed in fixed or vehicle-mounted forms to meet the demands of different scenarios, and direction-finding function is optional for additional installation.
Download the Datasheet316 KB

Message Parsing

Captures consumer drone coordinate broadcasts to accurately track flight paths in real time.

Unattended

The software background supports configuration of automatic disposal strategies with 24-hour unattended operation.

Multi-band Jamming

Optional jamming bands covering 400MHz to 5.8GHz.

Omnidirectional Jamming

360° horizontal jamming for instant, one-button area protection.

Specification

Item Indicator
Detection Radius 1～10km+ (Varies with deployment environment and target drone)
Detecting Frequency 400M, 900M, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Direction Finding Accuracy ≤3°（RMS）
Positioning Accuracy ≤10m（RMS）
Jamming Frequency 800M、900M、2.4G、5.2G、5.8G
Jamming Power 50W（800M、900M、5.2G）、65W（2.4G、5.8G）
Jamming Distance 3km (In open line-of-sight environment)
Jamming Angle Horizontal: 65°, Vertical: 30° (Directional)
Overall Dimensions 700×700×445mm (Excluding tripod and vehicle-mounted base)
Overall Weight 26kg
Power Supply Mode Mains AC 220V
Operating Temperature -20~+50℃

*Special Disclaimer: Due to the transition period between product updates and online display, the image and text specifications on this page may differ from the actual product. The images and text on this page are not intended to be used as a basis for actual delivery. Specific product and technical specifications are subject to the actual product configuration. Interested buyers should contact Zorelock sales staff for confirmation. Zorelock reserves the right to modify image specifications and make final interpretations.
